Choosing the Correct Caster Size – Why Height and Turning Space Are Important

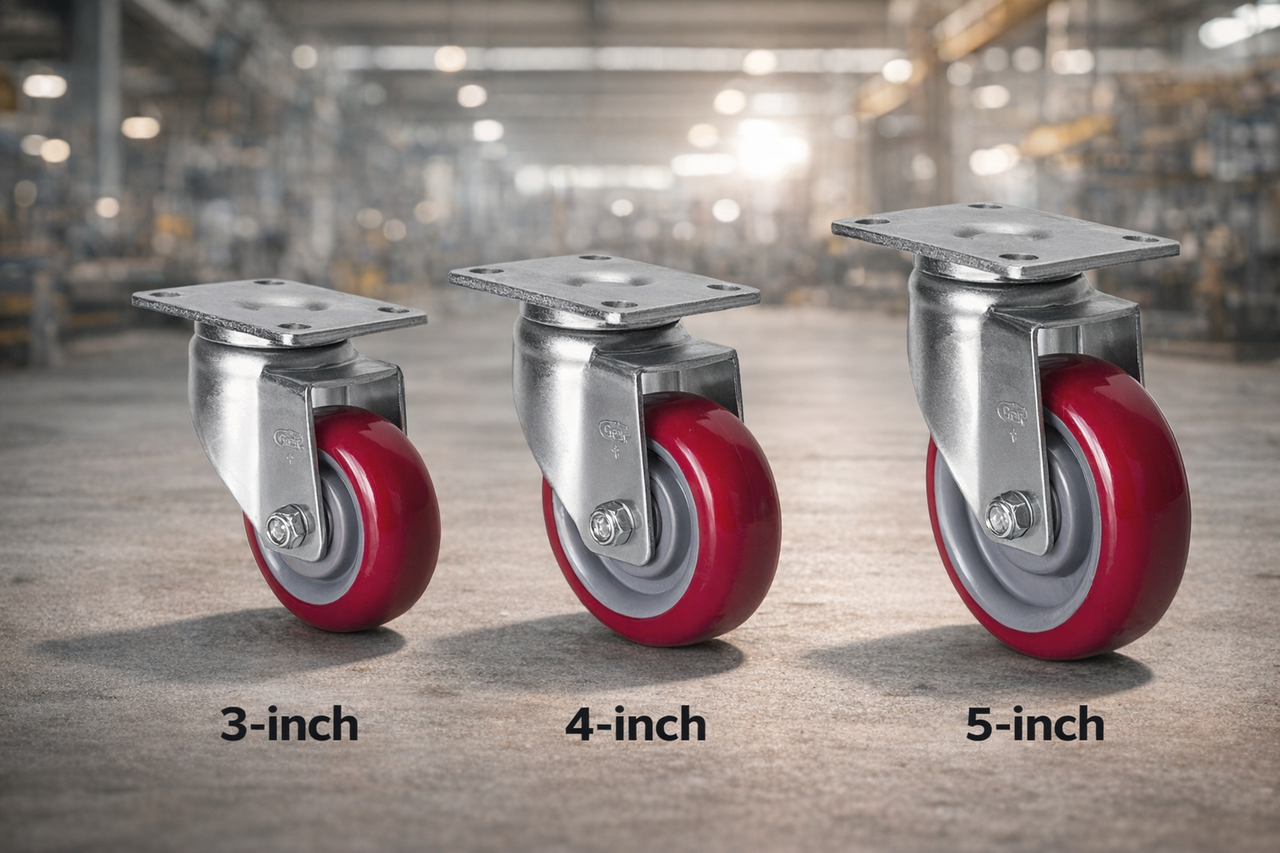

When you are looking for new casters, the first thing that crosses your mind is most possibly the wheels. You possibly state, “I require some 6 inch casters.” This is the main starting point for people usually. But it is also the very place where the problems start.

An exclusive focus on the size of the wheel can lead to huge problems. The carts you use might not function correctly. Wheels may snag on the ground. You might end up buying parts that are not functional. This caster size selection guide will serve the purpose of guiding you through these issues. We will begin with two important measurements: the height of the caster and the space it requires for turning.

Key Information

• Casters should not be selected based merely on wheel size. A 6-inch wheel does not automatically translate to a 6-inch caster.

• The Overall Height is the most vital factor to consider as it is the one that sets the height of the cart and makes it level.

• Swivel Radius is the space required for the caster to rotate in a full turn without colliding with your cart.

• Before you buy new casters, you must ensure they fit properly by measuring your current cart's height and space.

• Frame problems are when the cart gets hit by the wheels. This budget-busting mistake usually comes from ignoring the swivel radius.

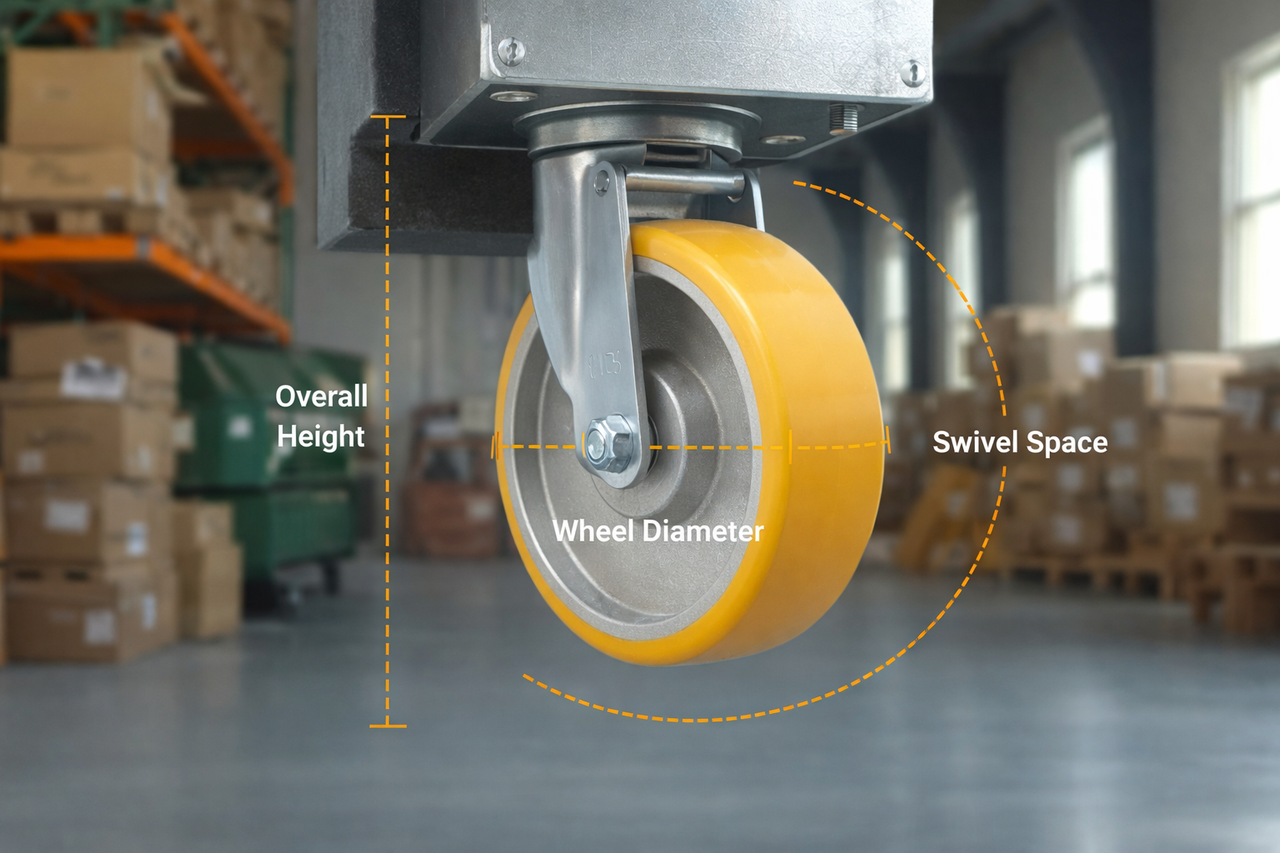

Beyond Just Wheel Size: The Hidden Numbers

In order to choose the appropriate caster, you have to look beyond just the wheel. There are several critical specifications from the sheet that will tell you how a caster would fit and perform. Gaining knowledge of these numbers is the first step in a reliable caster size selection guide.

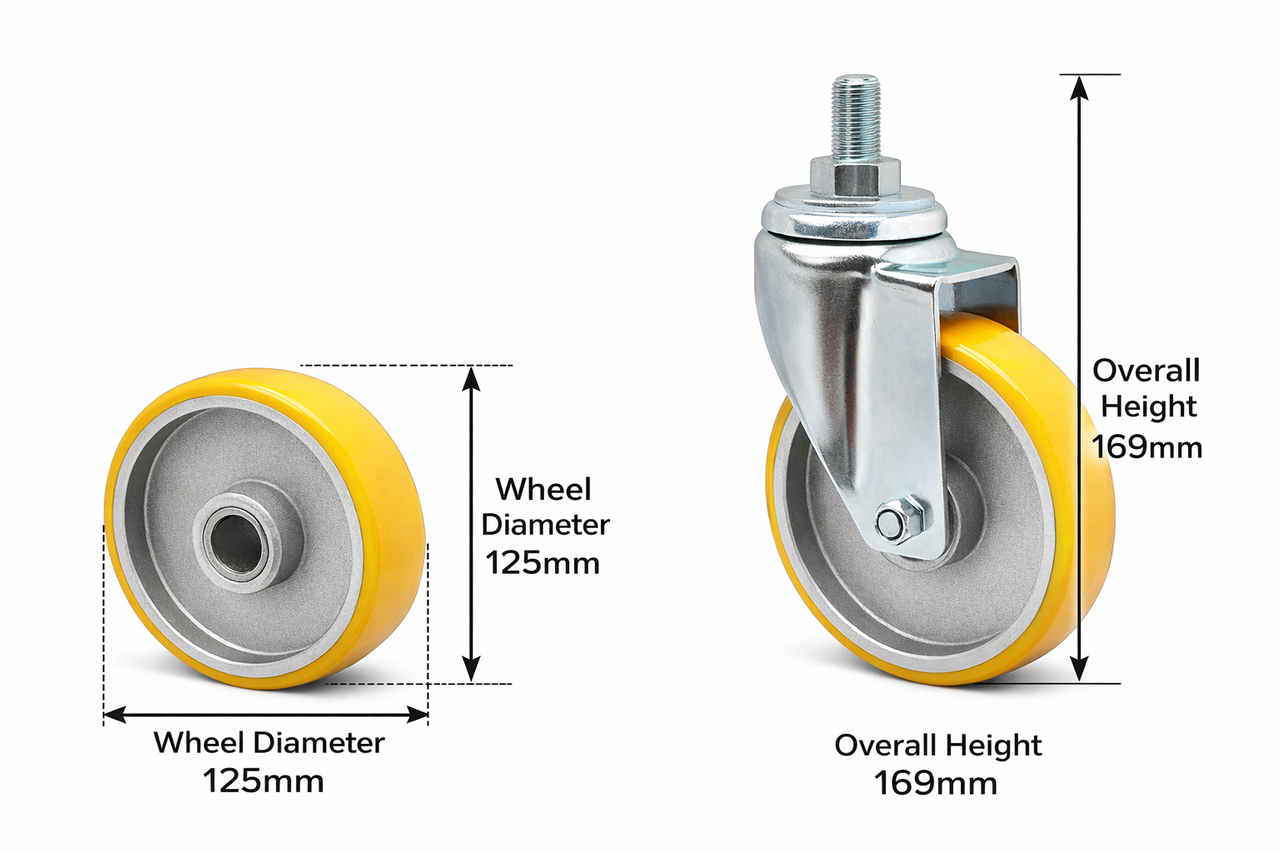

Overall Height: What Counts the Most

Overall Height, or OAH, is the distance measured from the ground to the highest point of the caster’s mounting plate. This number, not the wheel size, determines the height of your cart.

For example, two different 6 inch casters may have different parts. One of them could be overall 7.5 inches tall. The other one might be 7.75 inches tall. If you use both on a cart, it will tilt and feel unstable. Always use Overall Height to match your casters.

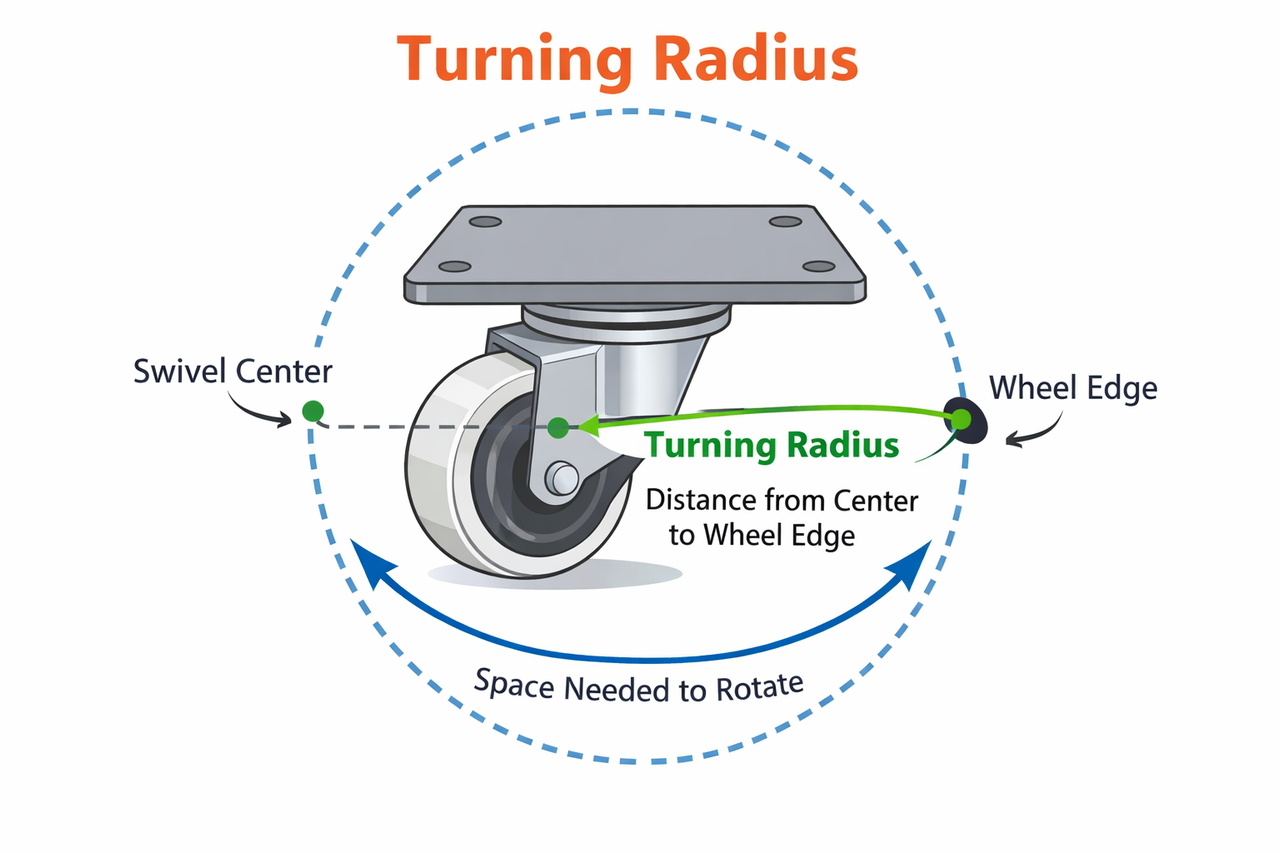

Swivel Radius: The Actual Space Required

Swivel Radius is the measurement from the center of the caster's turning point to the wheel edge, thus, creating a circle on the ground. This is the space that the caster needs for a full rotation.

This has a great effect on the clearance. Assume that you have mounted a caster which is too close to a cart leg. If the swivel radius is too big, then the wheel will hit the leg when trying to turn.

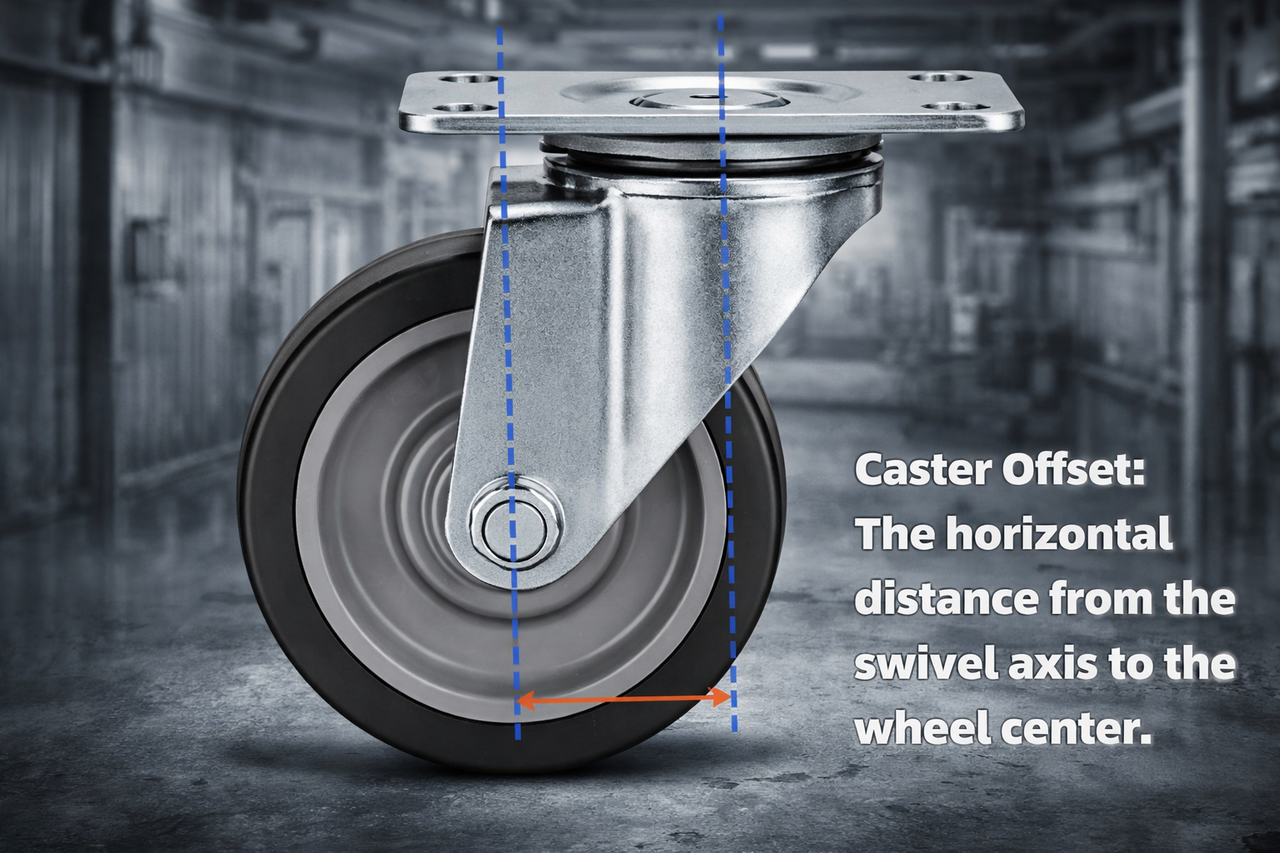

Caster Offset: What Turns It

Caster offset is the distance between the turning point and the wheel's center. This design feature serves a critical function.

A bigger offset will make it easier to engage the turn. But at the same time, it increases the swivel radius. This means that you will have to give up more space. A smaller offset needs less space, but it can make the caster harder to navigate.

The Trouble Area: When Casters Clash with Your Cart

Now let’s link these terms to a real problem: frame interference. This happens when your new casters are locked because they hit the equipment they are attached to. Understanding a caster overall height swivel radius helps prevent this.

Cart Turning vs. Caster Turning

First, let’s clear the air between cart turning and swivel radius. The swivel radius can be applied to only one caster and it describes the space it needs to spin. But your cart’s turning ability is about how tight the whole cart can turn. Thus, a bad caster choice can ruin the cart’s functionality.

Imagine a heavy cart with swivel casters placed at the edges of it. If you install 6-inch casters with a big swivel radius, the wheel can hit the inner edge of the cart every time it tries to turn. That is what we call frame interference. It becomes nearly impossible to turn the cart.

Why You Need Enough Space

Clearance is the distance around the caster same as a spinning point. It should be at least the full swivel radius from point to point.

The rule is simple: The distance from your mounting point to the nearest obstacle must be greater than the caster's swivel radius.

We have seen numerous cases when teams have bought high-rated 6 inch casters for a cart. Later on, they have found that the new, bigger swivel radius caused the wheels to hit against the car's support legs. As a result the cart was unusable. Such costly mistakes perhaps could have been avoided with five minutes of measuring. That is why a solid caster size selection guide always starts with measuring.

How to Measure Your Equipment

A stepwise, simple process will guide you in measuring your equipment. The steps provided below will help you in selecting new or replacement wheels and casters that will fit right the first time.

Step 1: Find Your Target Height

Place the cart on a flat and level floor. Then use a tape measure to find the distance from the floor to the bottom of the line where the caster mounts.

This is your target overall height. Write this figure down. Any new caster you buy should have an overall height that equals this number. Thus, you can keep your cart at the same height level.

Step 2: Find Your Maximum Turning Space

Look at where the caster is mounted. Measure from the central area in the installation site, to the nearest object that might be in your way. This could be a leg, a beam, or any part of the frame.

This measurement is your maximum swivel radius. Any caster you choose should have a swivel radius that is smaller than this. This is essential to ensure proper clearance.

Step 3: Make Your Shopping List

After measurements are made you can now create a checklist. The list will help you find the right caster and build on the Caster Mounting Options Guide.

Caster Shopping Checklist:*   1. Weight capacity (per caster) *   2. Target Overall Height: [Your measurement from Step 1] *   3. Maximum Swivel Radius: [Your measurement from Step 2] *   4. Mounting type (like top plate or threaded stem) *   5. Wheel size (approximate, like "6 inch casters") *   6. Wheel material (based on your floor type)

Final Considerations

Your job is not over with your shopping list only. You need to think about whether you need a whole new caster or just a new wheel.

New Wheels vs. Complete Casters

If your caster frame and its turning parts are in good condition, you may only need new wheels. This is the case when the old wheel is only worn out from use.

However, if you are planning to change the wheel size (for instance from 5 inch casters to 6 inch casters), you should be careful. A larger wheel will alter the overall height of the caster as well as the swivel radius. It is possible for the new, bigger wheel not to fit in the old frame. Or it may even cause interference problems. In these cases, you need to buy a complete new caster.

Keeping Your Cart Level and Stable

Never mix casters with different overall heights on one single cart as this will make it unstable and wobble which in turn is a safety hazard. The uneven weight distribution can also result in quicker wear on the casters.

When you switch all the casters on a cart, that's the chance you have to make an improvement. You can choose casters with a new overall height which in its turn will make the cart more comfortable for the workers to use. This thorough caster size selection guide makes sure you consider all the factors needed for your success.

Frequently Asked Questions

What happens if my swivel radius is too large for my cart?

Answer: If the swivel radius is larger than your available clearance, the caster wheel will hit the cart's frame, legs, or other obstructions. This will prevent the caster from turning freely, making the cart difficult or impossible to maneuver, especially in tight spaces.

Can I use 6 inch casters to replace my old 5 inch casters?

Answer: Maybe, but you can't be sure without measuring. The new 6 inch casters will likely have a different overall height and a larger swivel radius. You must use the measurement guide in this article to ensure that the new overall height is suitable and that you have enough clearance for the new, larger swivel radius.

Does a larger caster offset make it better?

Answer: Not necessarily. A bigger offset (or swivel lead) decreases the energy needed for the caster to achieve swiveling; thus, the motion is smoother. However, that same change also raises the swivel radius, which in turn requires more workspace. The “ideal” offset is the one that creates a balance between achieving an easy swiveling effect and the equipment’s constraints being fulfilled.

All my casters have the same overall height, but my cart is wobbly. Why?

Answer: If the overall height is consistent, check the caster rigs themselves. A wobbly feeling is oftentimes caused by damaged swivel sections (raceways). Over time, the ball bearings can wear down the metal creating a "play" in the swivel mechanism. In this case, you would need to replace the whole caster, not just the replacement wheels.

Where can I find the overall height and swivel radius for a caster?

Answer: Reliable manufacturers and suppliers place these critical dimensions on the product’s specification sheet or website. You are advised not to purchase a caster where these two essential measurements cannot be provided since it means that the caster might not fit your application.
