The Comprehensive Guide to Getting Extra Heavy-Duty Casters (>2 Ton) from China

Transporting equipment that weighs more than 2 tons (4,400 lbs) is a Herculean task in any factory. Normal casters will just fail on time. This creates safety risks and stops production. The special knowledge will make it easier to find the casters that fit in the extremely heavy loads. This article tells you how to choose the right characteristics. It also shows how to write a proper request of quotes and find a reliable heavy-duty caster supplier in China for your requirements. We deal with casters for heavy machines, factory carts, and production line trolleys.

Key Takeaways

• For loads over 2 tons, normal casters are not safe. You have to use the ones that are made for heavy duty factory work.

• Invest in forged steel, shock absorption, and double ball bearing swivel parts for easy rolling.

• Select the wheel material correctly, e.g. polyurethane on cast iron. This will protect the floors in the process of handling extra heavy loads.

• It is very important to have a detailed spec list before you contact any caster supplier. This way you will get the right quotes.

• Manufacturers in China are the first ones to be checked always. Ask for the quality papers, test reports, and previous project examples.

Standard Casters: What's Wrong?

You should not even think of using standard casters on loads over 2 tons. The parameters are not strong enough. This will be inevitable. Understanding how they fail will help you find the right solution.

The Physics of Failure

Most of the time, the listed capacity of a caster is for static load. This is the weight that a caster can hold while being stationary. The dynamic load is the loading of stress while in motion. This can have an outstanding more. For instance, if a multi-ton cart hits a crack or a piece of debris on the floor, the force on one caster may rise to several times the static weight.

This shock load is critical for the caster's weak points. The kingpin may bend or break. The ball bearings in the raceway may crush. The wheel may crack or bend. To be truly easy rolling casters for extra heavy load, each part has to be overbuilt.

The Costs of Wrong Casters

Wrongly using substandard casters leads to big issues. Here are some of the known risks associated with safety, speed, and finances.

• Safety Issues: The base failure of the caster can lead to a load of multiple tons falling fast. This puts workers' safety and can lead to injury and major production damage.

• Equipment Damage: A broken caster might damage the factory cart or trolley it is attached to. It can also destroy the expensive load it carries.

• Reduced Speed: Weak casters make it hard for carts to be pushed, pulled, and steered. This reduces your material handling speed and wastes time.

• Higher Costs: Replacing the broken casters frequently becomes costly. The price of production downtime and the lost production is usually much higher than the cost of the casters.

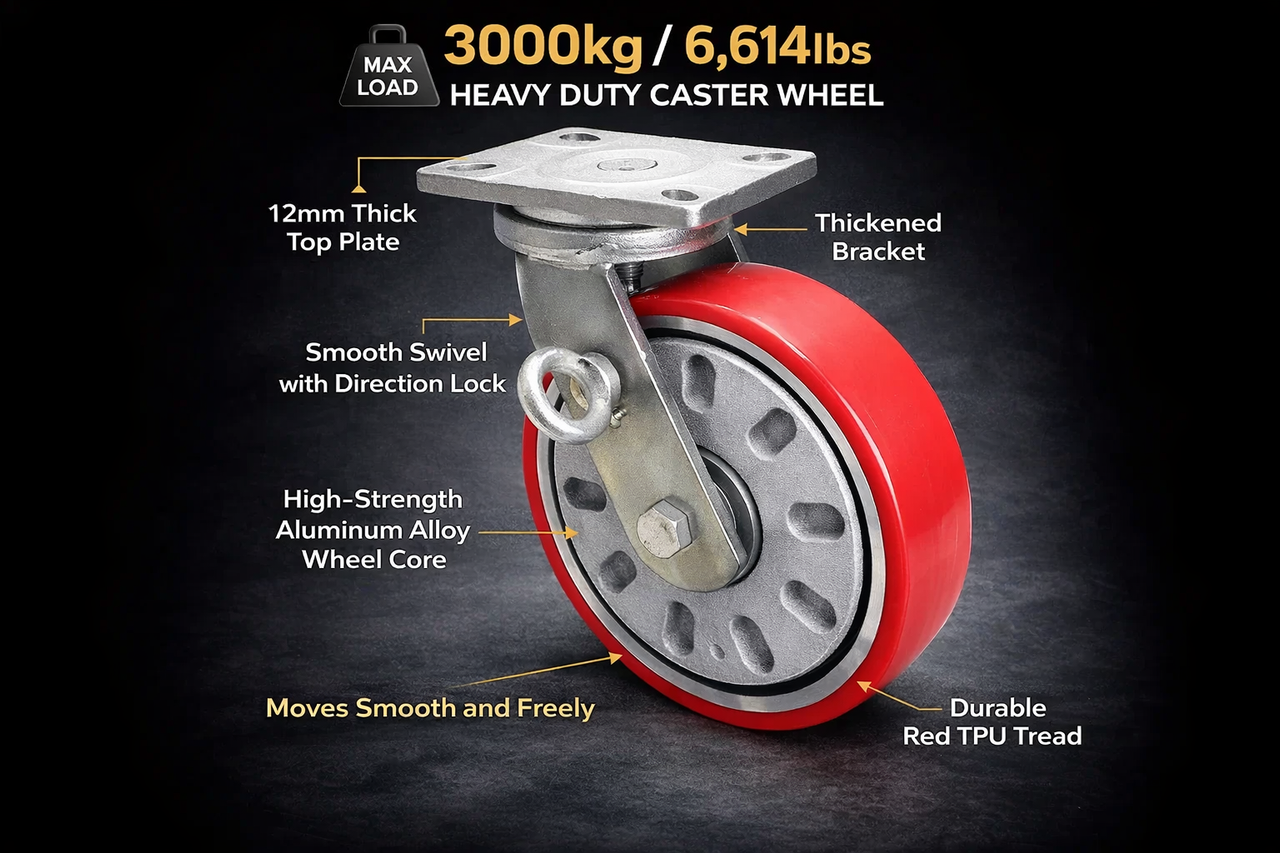

Basic Features for Carrying Heavy Loads

You should never underestimate the special features that casters have to withstand extreme stress. These parts in simple terms are the ones that make the roller be easily moving with pressure even in abnormal floor conditions.

Higher than Basic Capacity

The capacity of weight is the only matter. The genuine extra heavy-duty casters are also about the weight ratings. The build has to be rugged from the ground to the top. The top plate and yoke (the fork holding the wheel) should be thick, forged steel, not stamped steel. The shock-strength gain is huge.

A good number of heavy load casters for uneven floors are kingpinless. In place of a single bolt (the kingpin) that joins the swivel part, they have a large, single-row or double-row ball bearing raceway. This design distributes the load over a larger area. It is a lot better in dealing with the shock and side forces. For such conditions, many industrial users choose Extra-Heavy Duty Casters , applto improve durability and service life.

The Role of Shock Absorption

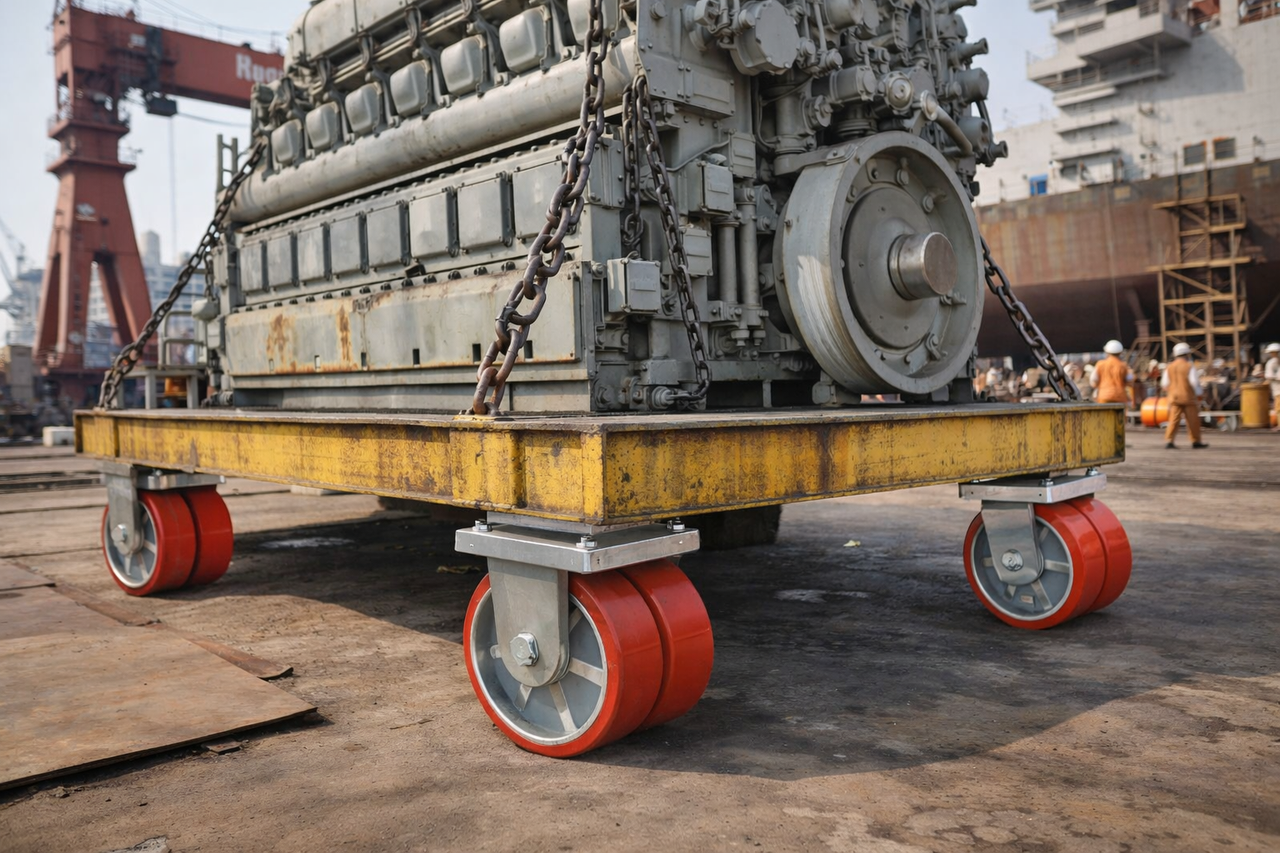

Most of the premises are full of bumpy floors. The aid of shock absorption in casters for heavy equipment is of utmost importance in avoiding damage to both cart and cargo. Visualize a situation: a 5-ton mold cart moves across a factory floor with flush expansion joints. Without shock absorbing casters, each time hits a jolt in the frame. This could risk damage to the mold.

Spring-loaded casters with heavy-duty die springs or rubber cushions neutralize this issue. They decrease the impacts, protect delicate loads, cut noise, and guarantee easy rolling even on non-leveling floors. This feature is important in casters for material handling equipment that carry valuable or fragile parts.

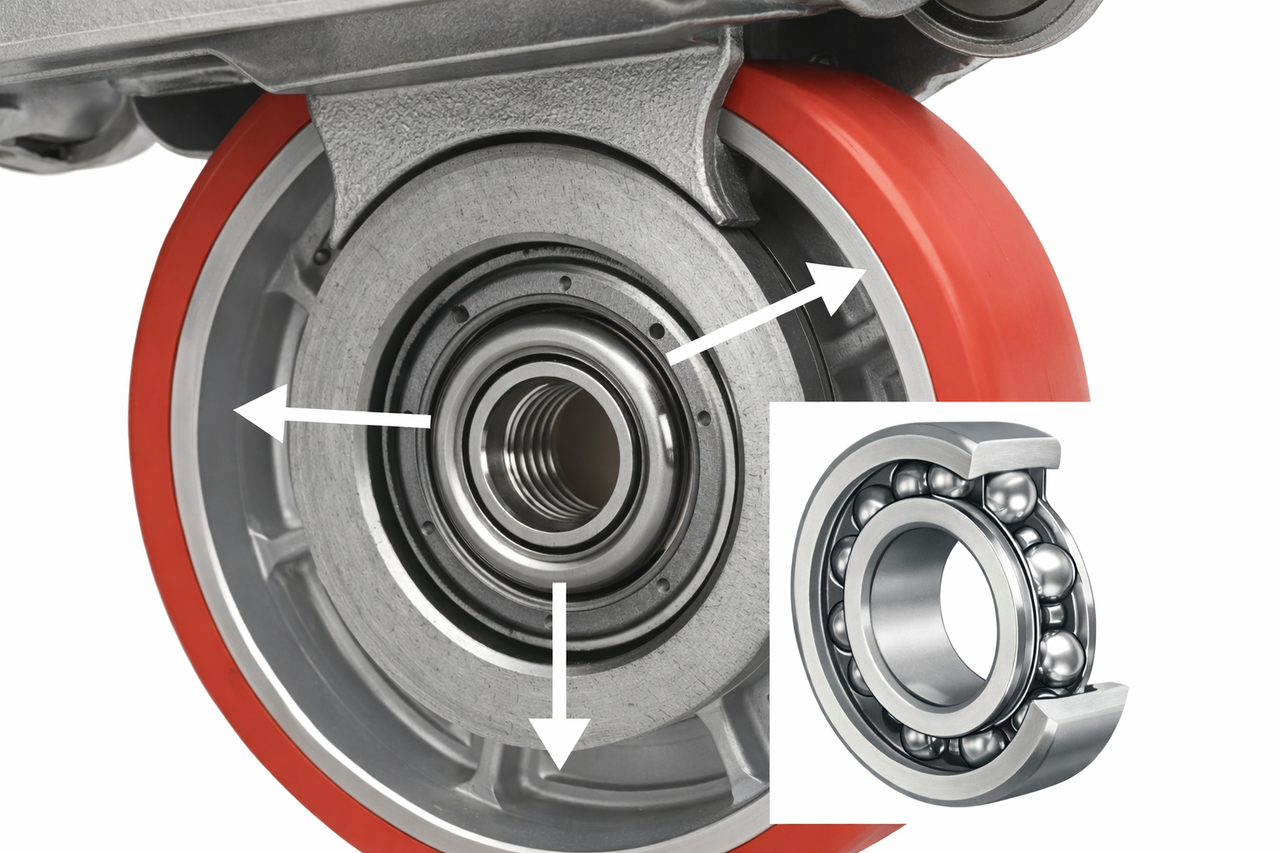

Bearings for Fluid Swiveling

For a caster to pivot easily under several tons of weight, it must have the right bearings. A caster with a double ball bearing raceway is a must. This design utilizes two sets of hardened steel ball bearings. They handle both thrust load and radial load. This allows for much smoother swiveling and steering compared to basic single-row designs.

The wheel also needs high-quality bearings. Precision ball bearings are great for the most part and have very low rolling resistance. For the highest loads, tapered roller bearings are used. They can stand extreme thrust and radial forces at the same time. These specifics are the ones that create a divide between the normal parts and the proper industrial casters for heavy machines.

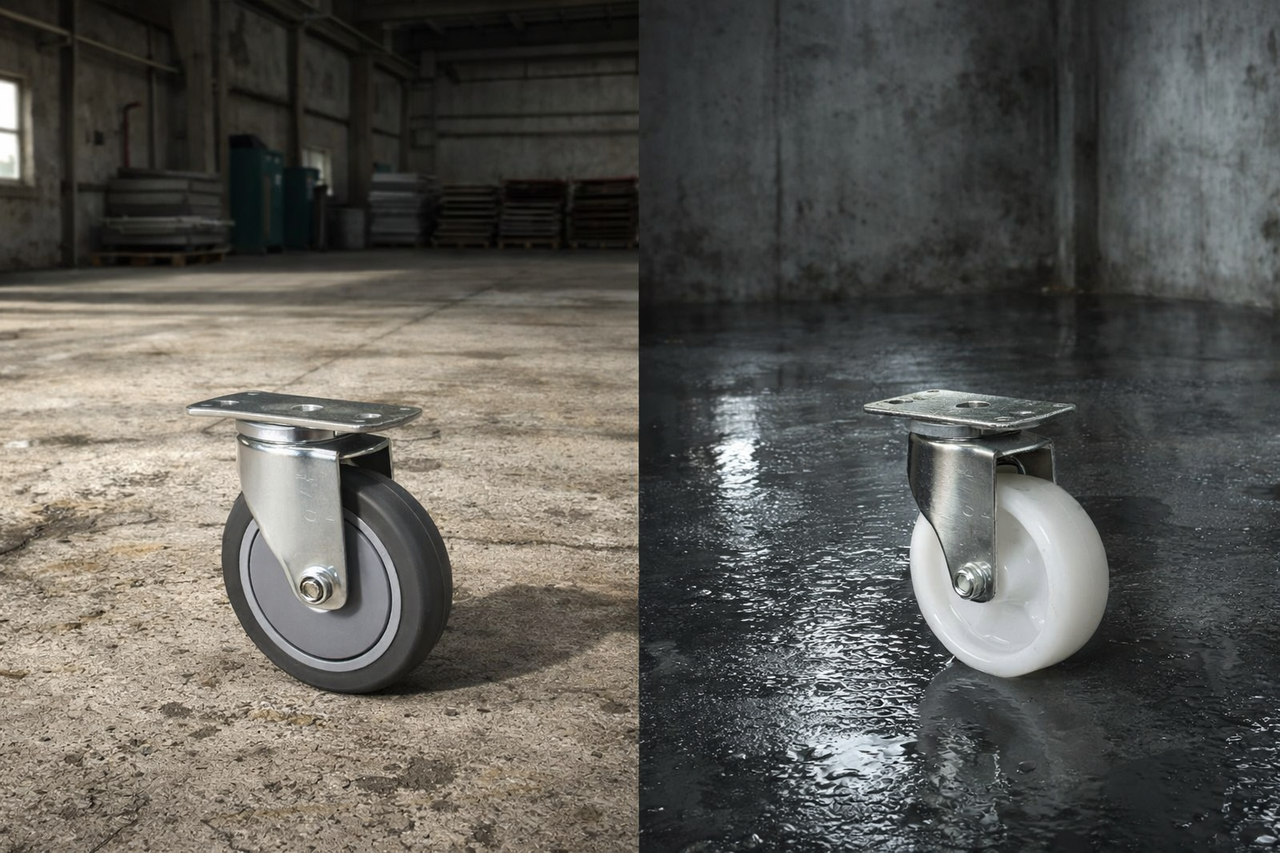

Choosing the Right Wheel

The wheel material directly impacts rolling ease, floor protection, and load capacity. For casters on manufacturing equipment, selecting the appropriate material is crucial. Below is the comparison of common wheel materials used for extra heavy-duty tasks.

Wheel Material	Load Capacity	Floor Protection	Rolling Ease (Hardness)	Best For...
Polyurethane on Cast Iron	Excellent	Good	Excellent	The most common choice for heavy machines and factory carts. Balances high capacity with floor protection.
Ductile Iron / Forged Steel	Extreme	Poor	Excellent (on smooth concrete)	Extreme loads (>5 tons per caster) and high heat. Will damage most floors.
Phenolic	Very Good	Fair	Excellent	A lower-cost option for heavy loads on very smooth floors. Can crack from severe impacts.
Nylon	Good	Good	Excellent	Resists impacts and does not mark floors, but has lower capacity than polyurethane or metal.

Your Main RFQ Checklist

Defining your specific needs is the first step before contacting a caster maker in China. Sending a detailed request for quotes saves time and ensures you get the right product. Copy this checklist and fill it out for each use.

Define Your Needs First

Formulating a clear spec is the first step to sourcing the right casters for production line trolleys and other heavy equipment.

•


1. Load Requirements:

2. The total weight of empty carts and equipment.

3. The maximum weight of the load it carries.

4. Required capacity per caster: Calculate by adding the cart weight and load weight, then dividing by 3. This gives a safety margin for uneven floors where one wheel may lift off the ground.

•


1. Operating Environment:

2. What are the floor materials (for example: smooth concrete, rough concrete, steel plate)?

3. Are there debris, oils, chemicals, or water present?

4. What is the operating temperature?

•


1. Movement & Dynamics:

2. Is the cart to be towed by a vehicle (towed by a line, AGV) or pushed by hand?

3. What's the maximum speed?

4. What is the moving frequency (constantly, a few times a day)?

•


1. Caster & Wheel Specs:

2. The specifications for Wheel Diameter and Width.

3. The preferred Wheel Material (e.g. Polyurethane on Cast Iron).

4. How many Swivel and Rigid casters do you need?

5. Do you need brakes or locks (e.g. a total lock that stops both swivel and roll)?

6. Special Features: Shock Absorption Required? Double Ball Bearing Swivel Raceway?

•


1. Mounting Specs:

2. The dimensions of the top plate (length, width, and bolt hole pattern).

3. The overall height limit for the caster.

4. If you want a stem mount, please specify the stem type and size.

How to Vet a Caster Manufacturer

To find a good caster wheel supplier for equipment makers in China, you must do more than merely compare prices. You need a partner that can deliver consistent quality and technical support.

Key Questions to Ask

Use these questions to evaluate potential suppliers. Their answers are evidence of their level of skill and expertise.

•


1. Request Quality Papers: Ask for their ISO 9001 certificate. This is a basic but important sign that they have a quality management system in place.

•


1. Ask About Material Sourcing: Ask where they get their steel and polyurethane. A good maker has stable, high-quality sources for raw materials. Cheap materials lead to caster failure.

•


1. Ask About Load Testing: How do they test their casters? They should be able to provide test reports for the model you want. Ask for dynamic load test data that simulates real-world use, not just a static load test report.

•


1. Request Reference Projects: Ask for examples of them supplying casters for similar heavy equipment or to customers in your industry. This proves they have experience with high-demand uses.

•


1. Check Technical Support: When you ask technical questions are their engineers responsive and knowledgeable? They should be able to provide detailed drawings and discuss details like polyurethane hardness (durometer) or bearing types. Just as you would consult a guide on different types of Industrial Casters in your home market, apply the same detailed review when checking overseas partners.

Conclusion: Make the Right Choice

Going for easy rolling casters for creating heavy loads is an investment in the safety, speed, and reliability of your factory. It is not the right place to save money. The difference between a regular caster and an industrial quality caster is in the details: forged steel, superior welds, double ball bearing raceways, and shock-absorbing springs.

By following the detailed criteria and carefully checking your potential manufacturer, you can be sure that you will get the casters that will last for years. These are the same steps that you will attempt whether you are sourcing from China or anywhere else in the world to find the right casters for heavy machines.

Frequently Asked Questions (FAQ)

What is the minimum load for an "extra heavy duty" caster?

Defining "extra heavy duty" in testing and load standards can change, but "extra heavy duty" typically refers to a weight capacity of more than 4,400 lbs or 2 metric tons per caster for industrial machines. You should always check how the manufacturer tests and rates their products.

Are pneumatic casters good for heavy loads?

Pneumatic (air-filled) casters provide excellent shock absorption however, they typically have lower load capacities than solid polyurethane or steel wheels. They also require periodic air pressure maintenance. For multi-ton loads, spring-loaded solid casters are a more durable and maintenance-free choice.

How do I calculate the necessary caster capacity?

Add the weight of your cart to the maximum weight of the load it will carry. Divide this total weight by 3. You will have a crucial safety margin. It will control the conditions of the floors where one wheel will not touch the ground, and therefore, the other three will take the full load.

For casters with double ball bearings, what should I look for?

Look for a large diameter raceway made of hardened steel. A larger raceway spreads the load more evenly. This helps the caster swivel smoothly and last longer. This is very important for casters on production line trolleys that move constantly.

Can I get a sample from a caster supplier in China?

Yes, and you should always ask for one. A reputable extra heavy duty caster maker in China will be happy to send samples for you to test. This is a vital step to confirm the quality and make sure the caster fits your equipment before you place a large order.
