EDL New Product

Conductive Casters for ESD-Sensitive Industries

Designed for electronics, semiconductor, medical, and precision equipment applications, EDL conductive casters provide stable electrostatic discharge performance together with smooth mobility and reliable load support.

In ESD-sensitive environments, static electricity can directly affect equipment operation, damage sensitive components, and reduce production stability. A reliable conductive caster helps form a continuous discharge path during movement, making it an important part of modern ESD control.

Stable ESD Dissipation Continuous conductive path for efficient static discharge.

Industrial Load Capacity Built for equipment movement with stable structural support.

Smooth Rolling Performance Easy movement with consistent control in precision areas.

Multiple Mounting Options Flexible configurations for different equipment designs.

Typical Industries Electronics manufacturing, semiconductor facilities, medical equipment, and precision instruments.

Core Value Helps reduce static buildup while keeping equipment movement stable and controllable.

Series 50-C57 series with multiple sizes, structures, and brake configurations.

Why Conductive Casters Matter

In high-precision production environments, ESD management is not only about protection, but also about continuously releasing static electricity during actual equipment movement.

Conductive casters provide the necessary low-resistance path from equipment to ground, helping reduce static accumulation and supporting safer, more stable daily operation.

√ Reduce the risk of electrostatic buildup during movement
√ Protect sensitive electronic and medical components
√ Improve operational consistency in controlled environments
√ Support long-term equipment reliability

Working Principle

During equipment movement, static electricity is transferred through the conductive structure and discharged to the ground through the wheel-floor contact path.

Equipment → Fork → Wheel → Floor → Ground

Recommended conductive resistance range: 10³–10⁵ Ω

This range supports continuous static dissipation while maintaining practical performance for industrial caster applications.

Specifications (50-C57 Series)

The 50-C57 conductive caster series is developed for equipment applications that require balanced performance in load capacity, installation flexibility, and stable ESD control.

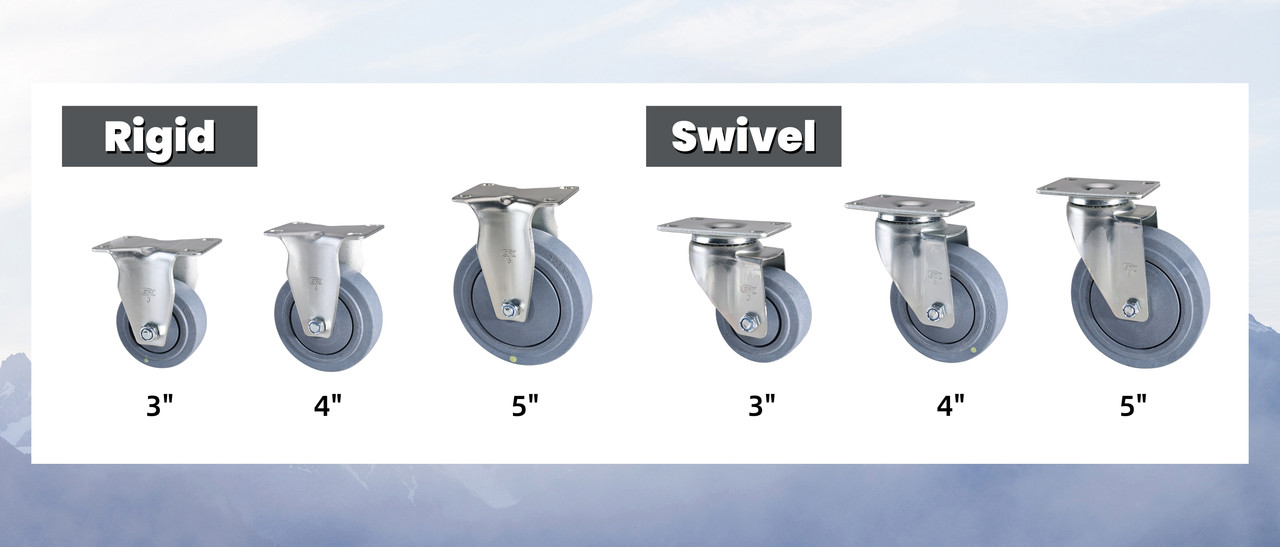

Wheel Size

3 inch / 4 inch / 5 inch

Load Capacity

90kg / 110kg / 130kg

Wheel Material

Conductive TPE

Application Focus

Precision equipment, electronics production, medical devices, and ESD-sensitive workstations

Configurations

Multiple mounting structures with swivel and brake options

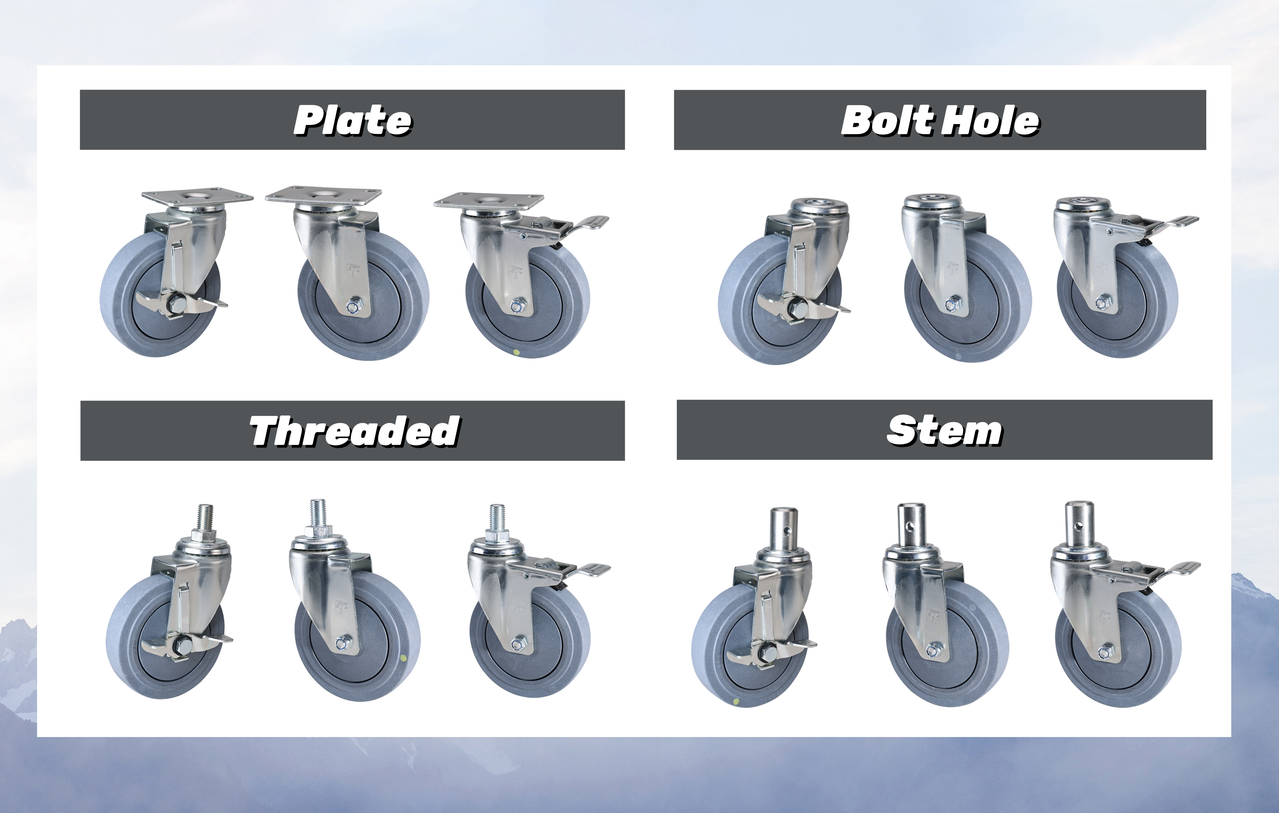

Mounting Options

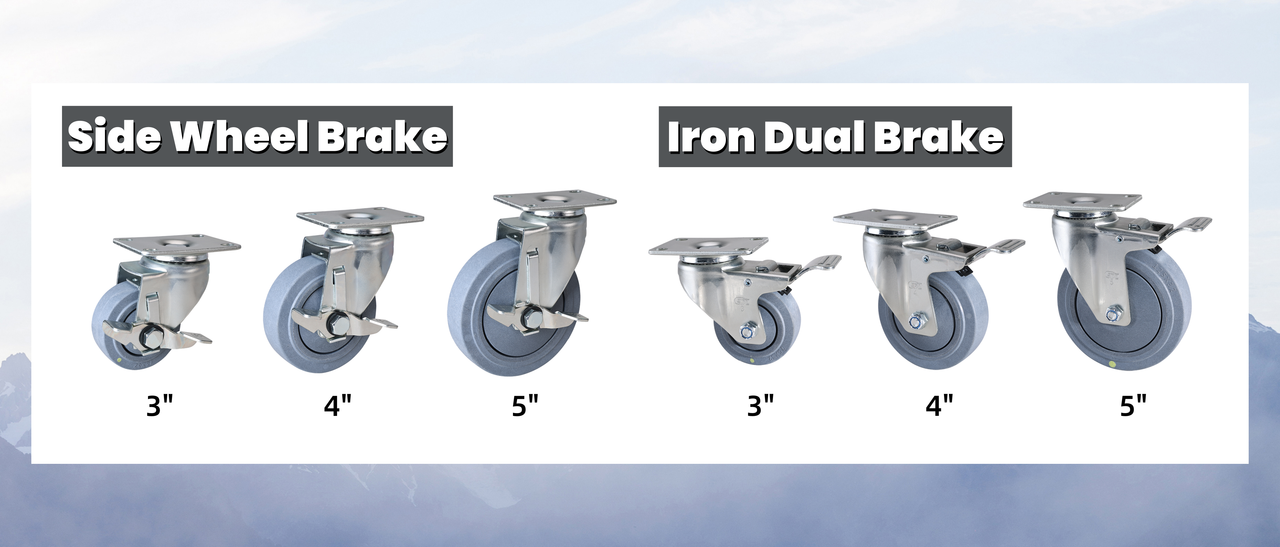

The 50-C57 series is available in multiple mounting structures to match different equipment installation requirements. Except for rigid type, the other mounting types can be configured with swivel, side brake, and iron double brake options.

Mounting Type	Rigid	Swivel	Side Brake	Iron Double Brake
Plate	✔	✔	✔	✔
Threaded	-	✔	✔	✔
Stem	-	✔	✔	✔
Bolt Hole	-	✔	✔	✔

Need Conductive Casters for Your Equipment?

Contact EDL for product selection, configuration advice, and quotation support for ESD-sensitive industrial applications.
