CategoryHi-Temp Medium DutyItem NO.h50124L- h504-h4B

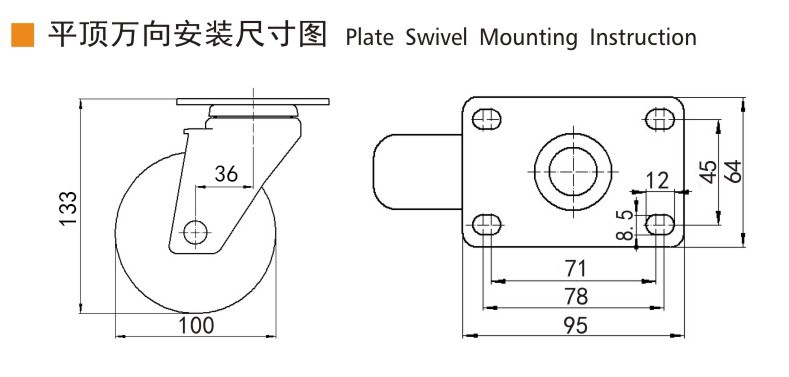

Wheel Diameter4"(100mm)Mounting Type

Plate Swivel

Tread MaterialHi-Temperature NylonDynamic Load125kg
Plate MaterialCold-rolled Plate

Brake Type

Iron Dual Brake
Wheel Width30mmBracket Width41mm
Mounting Height133mmSurface TreatmentZinc Coating
Plate Thickness4mmBracket Thickness2.5mm

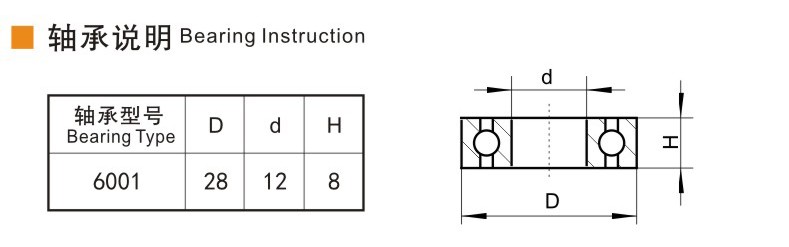

ColorBrownBearingDouble Ball Bearing
Applicable Temperature210℃Tread Hardness67D





Product Details

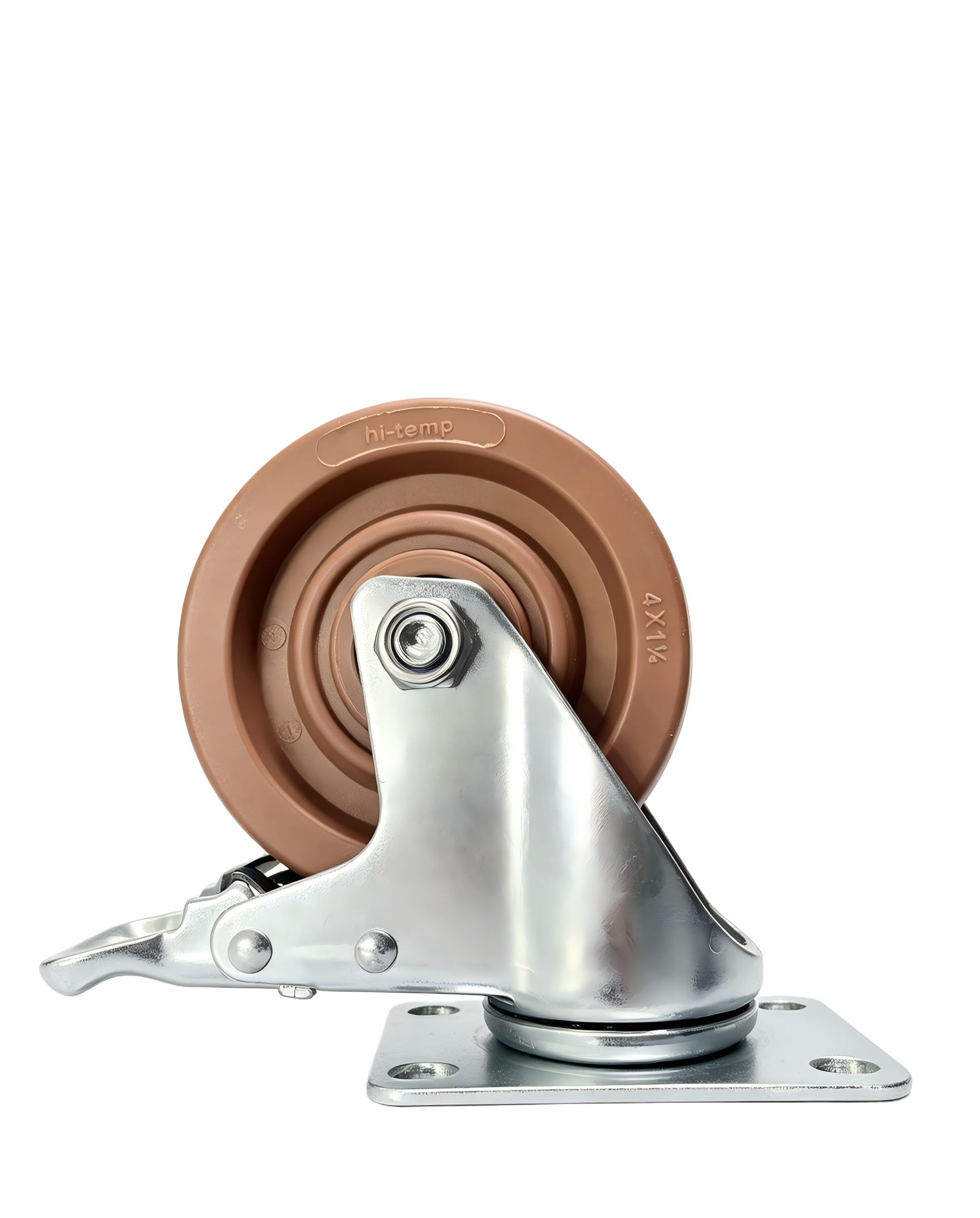

Designed for high-temperature industrial applications, the h50124L- h504-h4B swivel casters with brake feature a specially developed heat-resistant nylon wheel that can continuously withstand temperatures up to 210°C. With excellent thermal stability and durability, they are suitable for baking ovens, food processing equipment, heating facilities, and other environments requiring reliable mobility under high temperatures.


The caster is built with a strong carbon steel bracket and a 4 mm thick top plate, providing excellent structural strength and supporting a load capacity of up to 125 kg per caster. The swivel design allows equipment to move in multiple directions, while the integrated brake system enables secure positioning and stable operation whenever needed.


Equipped with dual ball bearings inside the wheel, these casters provide smooth and effortless rolling performance while reducing pushing force during operation. The precision bearing structure also helps improve service life and maintain stable performance during frequent movement. The reliable brake mechanism ensures enhanced safety by preventing unwanted movement during equipment operation or when parked.


Combining high temperature resistance, reliable load capacity, smooth rolling performance, flexible swivel movement, and secure braking capability, these nylon swivel casters with brake are an ideal choice for industrial equipment that requires efficient mobility and stable positioning in high-temperature environments.
